XRC Sphere Select

edu.cornell.xrc.toolkit.sphereselect

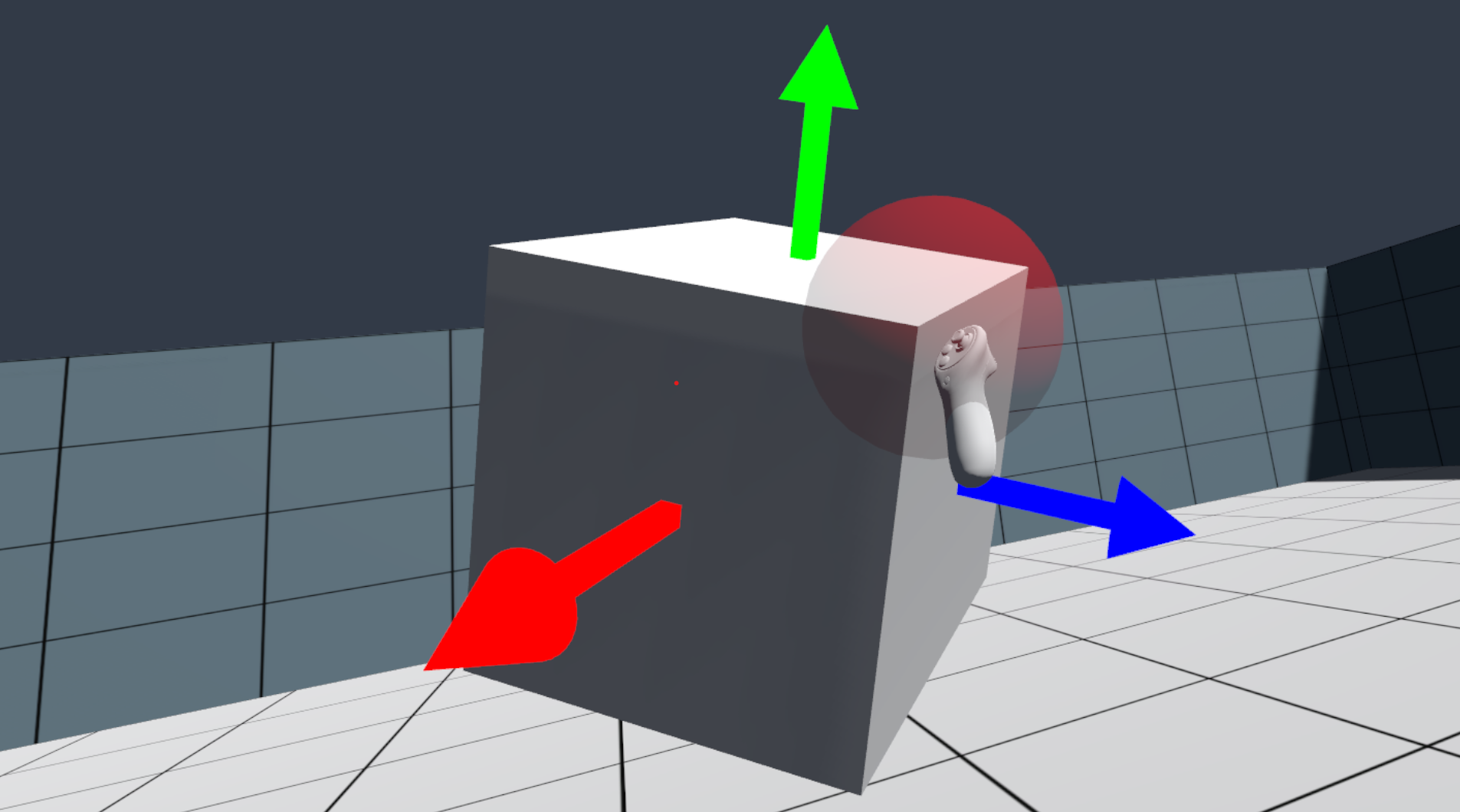

An implementation of a selection technique using a sphere as the selection volume; Sphere Select. This is similar to the selection technique found in Gravity Sketch.

Technical details

Package

  • Name: edu.cornell.xrc.toolkit.sphereselect
  • Display name: XRC Sphere Select
  • Version: 0.2.0
  • Git URL

Requirements

This version of the XRC Sphere Select package is compatible with the following versions of the Unity Editor:

  • 6000.1 and later

Dependencies

The XRC Sphere Select package has the following dependencies which are automatically added to your project when installing:

  • com.unity.xr.interaction.toolkit@3.0.7
  • com.unity.inputsystem@1.11.2

If the package has additional Git dependencies listed in the package description, such as XRC Toolkit packages, then they need to be installed manually via the Unity Package Manager.

Installation

To install the package, follow these steps:

  1. In the Unity Editor, click on Window > Package Manager
  2. Click the + button and choose Add package from git URL option
  3. Enter the package's Git URL. Make sure the URL has ".git" ending.
  4. If the repository is private, you will be asked to authenticate via your GitHub account. If you haven't been granted access to the repository you will not be able to install the package.
  5. The package should be installed into your project.
  6. You can download the package samples from under the Samples tab in the Package Manager

From Unity: Install a UPM package from a Git URL

Note

Even though the package documentation is public, the package itself and its repository might be private and not accessible. If you haven't been granted access to the repository you will not be able to install the package.
